Active Air Dam System Fault – A Complete 3000-Word Guide to Causes, Fixes & Prevention

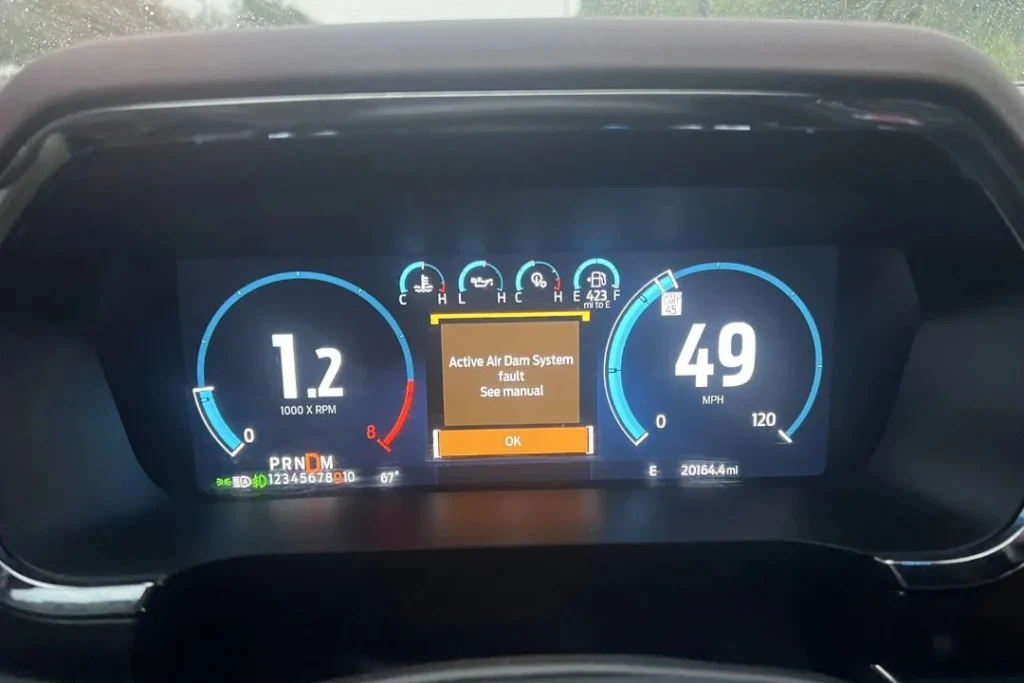

Have you ever seen the dreaded “Active Air Dam System Fault” message pop up on your dashboard and had no idea what it meant? You’re not alone. While it sounds like a complex, technical issue, this common problem affects many modern trucks and SUVs, especially those from Ford and Ram. But here’s the good news: by the end of this guide, you’ll know exactly what it is, how it works, what causes it to fail, and how to fix it—without getting taken for a ride at the mechanic.
What Is the Active Air Dam System Fault?

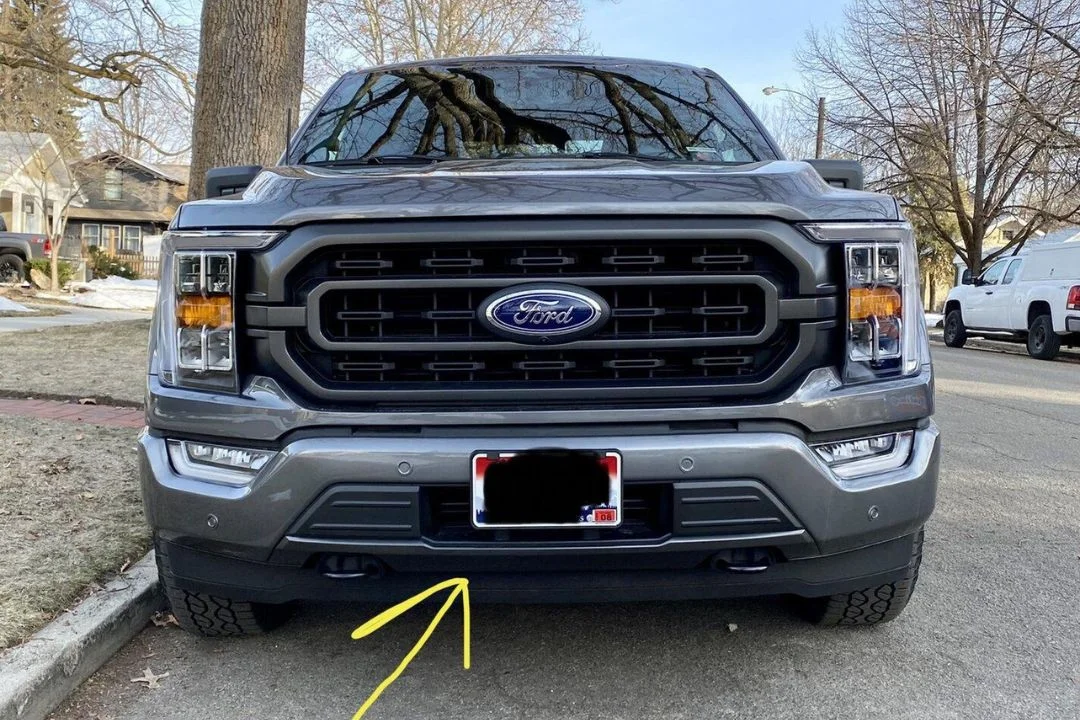

The active air dam is part of your vehicle’s aerodynamic system. It’s a movable panel located beneath your front bumper that automatically deploys at higher speeds to improve airflow under the vehicle. When there’s a system fault, the dam may be stuck, not deploy at all, or fail to retract properly—potentially hurting fuel economy and airflow efficiency.
Understanding the Active Air Dam System
What Does the Active Air Dam Do?
Think of it like a smart spoiler—but under your bumper. At highway speeds, the air dam lowers to reduce drag, which improves fuel efficiency and stability. At lower speeds, it retracts to avoid curbs, speed bumps, or off-road obstacles.
The Technology Behind It
The system uses a motorized actuator, sensors, and ECU programming to determine when to deploy or retract the air dam. It’s fully automatic, requiring no input from the driver.
Active vs Fixed Air Dams
Unlike fixed air dams that are always extended, active air dams are dynamic and only operate when needed. This offers a good balance of performance and practicality—until something goes wrong.
Benefits of an Active Air Dam
1. Improved Fuel Efficiency
Reducing drag means less resistance. That translates into better MPG, especially on highways. Automakers claim a 1–2 MPG improvement with an active system.
2. Better Aerodynamics
A lowered air dam channels air more efficiently under and around the vehicle, reducing turbulence and lift.
3. Enhanced Engine Cooling
By optimizing airflow, the system can also help with cooling critical components like the radiator and intercooler.
How the System Works
Sensors and Control Modules
Speed sensors, temperature sensors, and the powertrain control module (PCM) work together to determine when to deploy the air dam.
Actuator Mechanism
A small electric motor or servo powers the movement. This actuator can fail mechanically or electrically.
How and When It Deploys
Usually, the dam deploys at highway speeds (above 40 mph) and retracts when the vehicle slows down or comes to a stop. Some models also retract the air dam when switching to off-road or towing modes.
Common Symptoms of an Active Air Dam Fault
- Dashboard warning message like “Active Air Dam System Fault”
- Clicking, buzzing, or grinding sounds from beneath the front bumper
- Stuck air dam, visibly deployed even when parked
- Lower fuel efficiency than usual
- Loss of aerodynamic stability at higher speeds
What Triggers the “Active Air Dam System Fault”?
1. Actuator Motor Failure
This is the most common issue. The motor can burn out or get jammed due to corrosion or debris.
2. Physical Obstruction or Debris
Rocks, ice, or snow can block the mechanism. This can damage the air dam or stop it from moving.
3. Sensor or Control Module Malfunction
If the vehicle’s sensors misread speed or temperature, it can trigger a false fault.
4. Software or Calibration Issues
Sometimes, a system update or programming glitch can disable the system. This often happens after battery replacement or ECU tuning.
5. Electrical Problems (Wiring, Fuse, Relay)
Loose connectors, frayed wires, or a blown fuse can disrupt communication between the dam and the ECU.
Which Vehicles Commonly Experience This Issue?
- Ford F-150 (2015 and newer)
- Ram 1500 (especially models with EcoDiesel or HFE packages)
- Chevy Silverado and GMC Sierra
- Nissan Titan and some full-size SUVs
Basically, if your truck is newer and was marketed as fuel-efficient, it probably has one.
Step-by-Step Diagnosis of Active Air Dam Issues
Step 1: Scan for Error Codes
Use an OBD2 scanner to check for trouble codes related to the air dam actuator or body control module.
Step 2: Physical Inspection
Look under the front bumper for signs of damage, debris, or misalignment.
Step 3: Check the Fuse and Relay
Consult your owner’s manual for fuse locations and make sure the circuit is intact.
Step 4: Test the Actuator
Apply 12V directly to the motor to see if it moves. No response likely means the actuator is toast.
Step 5: Inspect Wiring and Connectors
Look for corroded terminals, broken wires, or unplugged connectors.
Repair Options for Active Air Dam Faults
DIY Repairs vs Professional Help
If you’re handy with tools and have a decent jack, you can do some fixes yourself. But more complex issues may require dealership diagnostics.
Replacing the Actuator Assembly
The actuator is usually a bolt-on part. Replacements cost $150–$400, depending on make and model.
Repairing or Replacing Sensors
If a sensor is misreading data, it can be replaced or reprogrammed.
Software Reprogramming or Updates
A trip to the dealer might be necessary for a system reset or software update.
How Much Does It Cost to Fix an Active Air Dam System Fault?
| Component | Estimated Cost (USD) |
|---|---|
| Actuator Motor | $150–$400 |
| Labor (2–3 hours) | $200–$500 |
| Diagnostics | $75–$150 |
| Fuse/Relay Replacement | $10–$30 |
Total Average: $300 to $900
Can You Drive with an Active Air Dam System Fault?
Technically, yes. The vehicle will still run just fine, but you might experience:
- Lower fuel economy
- Reduced cooling at high speeds
- Aerodynamic instability at highway speeds
- A permanent dashboard warning light
Long-term driving with the fault can also lead to engine overheating, especially during towing or in hot climates.
Preventive Maintenance for Active Aero Systems
- Wash the undercarriage regularly
- Avoid deep snow, ice, and off-road obstacles
- Check the dam during oil changes
- Protect connectors from moisture
Ford and Ram Specific Troubleshooting Tips
Ford F-150
- Check Service Bulletin TSB 21-2110
- Faulty connections under the front bumper are common
- Disconnecting the battery may temporarily clear the warning
Ram 1500
- Rams often experience mechanical actuator jamming
- Some owners install air dam delete kits
- Ram issued software updates for 2019+ models
How to Disable or Bypass the Active Air Dam (If Needed)
Pros and Cons
| Pros | Cons |
|---|---|
| No more faults | Loss of MPG |
| Less mechanical risk | May void warranty |
| Off-road clearance gains | Legal issues in some areas |
Manual Retract Methods
Some trucks allow you to manually bolt the dam in the up position. Be cautious, as this isn’t always recommended.
Tuning and Programming Solutions
Aftermarket ECU tuners can disable the system entirely—though this should be done responsibly and may not be street legal.
Upgrades and Alternatives
- Aftermarket fixed dams for performance or off-road use
- Skid plates and bash guards for protection
- Custom tuning to balance performance with practicality
Future of Active Aerodynamics in Vehicles
With the rise of EVs and hybrids, active aero systems will become even more important. Expect smarter systems that:
- Adapt to road conditions
- Sync with GPS and drive modes
- Use AI for real-time aerodynamic optimization
Active Air Dam System Fault Conclusion
The “Active Air Dam System Fault” may sound intimidating, but it’s usually a fixable problem with a few simple tools or a quick trip to the shop. Now that you know what it is, how it works, and what can go wrong, you’re one step ahead of the curve. Whether you’re a DIY mechanic or just want to avoid being ripped off, this guide should help you make confident decisions and keep your ride running smooth—and efficient.
Active Air Dam System Fault FAQs
1. What happens if the active air dam fails?
If it fails to deploy or retract, it may reduce fuel efficiency and cooling, and cause a constant warning light.
2. Can I replace the air dam myself?
Yes, with basic tools and a jack, most people can replace the actuator or entire air dam assembly themselves.
3. Does a faulty air dam affect my gas mileage?
Yes, aerodynamic drag increases, which can reduce highway MPG by 1–2 miles per gallon.
4. Is there a recall on active air dams for Ford or Ram trucks?
There are TSBs (Technical Service Bulletins) and software updates, but no mass recalls at the time of writing.
5. How do I reset the active air dam fault warning?
Disconnecting the battery for 15 minutes may reset it. Otherwise, an OBD2 scan tool or dealer visit is needed.
